Royal Quick-Grip™ Pull-to-a-Stop CNC Collet Chuck
QG-42 Compact with A2-6 Mount
$4,690.00
In Stock for Same Day Shipping
- 10-Second Collet Changes Slash Setup Times.
- Industry-Leading Gripping Range – 0.062"
- Ultra-Precision Accuracy – 0.0002" TIR Guarenteed.
- Compact and ultra-compact models to suit all machines and applications.
- Extreme Grip Force = Most Aggressive Chip Removal Rates and Fastest Cycle Times.
- Maximum Rigidity Produces Superior Part Finishes.
- Best Tool Clearance – Critical For Live Tooling.
- Huge Inventory of Quick-Grip Collets and Accessories In-Stock for Same-Day Shipping.
- Includes free custom machined connector to fit your exact lathe drawtube specifications.
- Same great features as our Accu-Length™ Quick-Grip™ models, except that the collet is not fixed - it moves axially upon opening and closing.

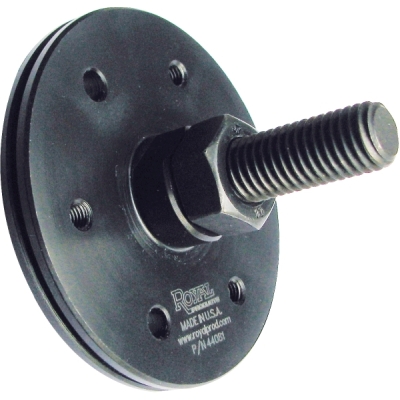

- Included adjustable stop guarantees precise, consistent z-axis part positioning and enables very aggressive cutting.
- Ideal for high-volume, robot-load applications in which the part needs to locate against a shoulder and air-sensing / position confirmation is required.
- Also a great choice for any CNC lathe equipped with a servo-driven bar feeder - simply remove the included stop for full thru-capacity.
- In-stock for same day shipping.
- Proudly Made in U.S.A.
| Collet Chuck Weight (lbs) | 25 |
|---|---|
| Spindle Type | A2-6 |
| Collet Type | QG-42 |
| Max Capacity: Bar | 1.66 |
| Max Capacity: Slug | 2.62 |

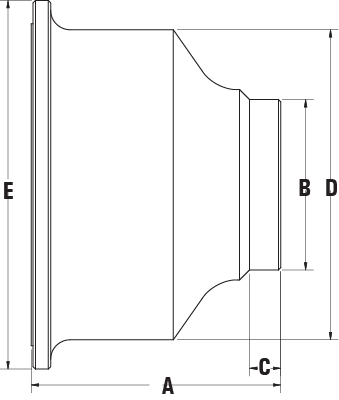

| (A) Overall Length | 5.50 |
| (B) Nose Diameter | 3.54 |
| (C) Nose Length | 0.62 |
| (D) Body Diameter | 6.25 |
| (E) Flange Diameter | 7.45 |
| Max Drawbar Force (lbs) | 7,865 |
| Max Clamping Force (lbs) | 17,980 |
| Max RPM | 6,000 |
