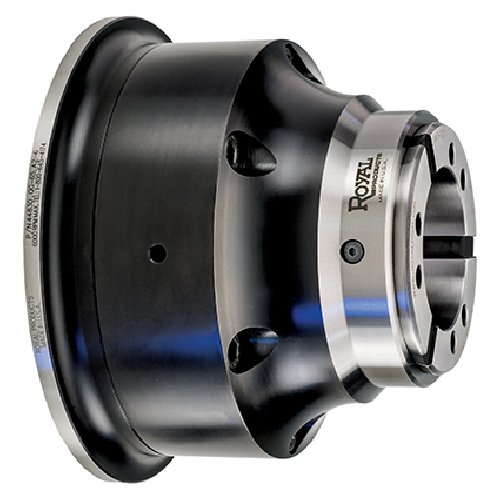

Royal Quick-Grip™ Pull-to-a-Stop CNC Collet Chuck
QG-65 Compact with A2-5 Mount
In Stock for Same Day Shipping
- 10-Second Collet Changes Slash Setup Times.
- Industry-Leading Gripping Range – 0.062"
- Ultra-Precision Accuracy – 0.0002" TIR Guarenteed.
- Compact and ultra-compact models to suit all machines and applications.
- Extreme Grip Force = Most Aggressive Chip Removal Rates and Fastest Cycle Times.
- Maximum Rigidity Produces Superior Part Finishes.
- Best Tool Clearance – Critical For Live Tooling.
- Huge Inventory of Quick-Grip Collets and Accessories In-Stock for Same-Day Shipping.
- Includes free custom machined connector to fit your exact lathe drawtube specifications.

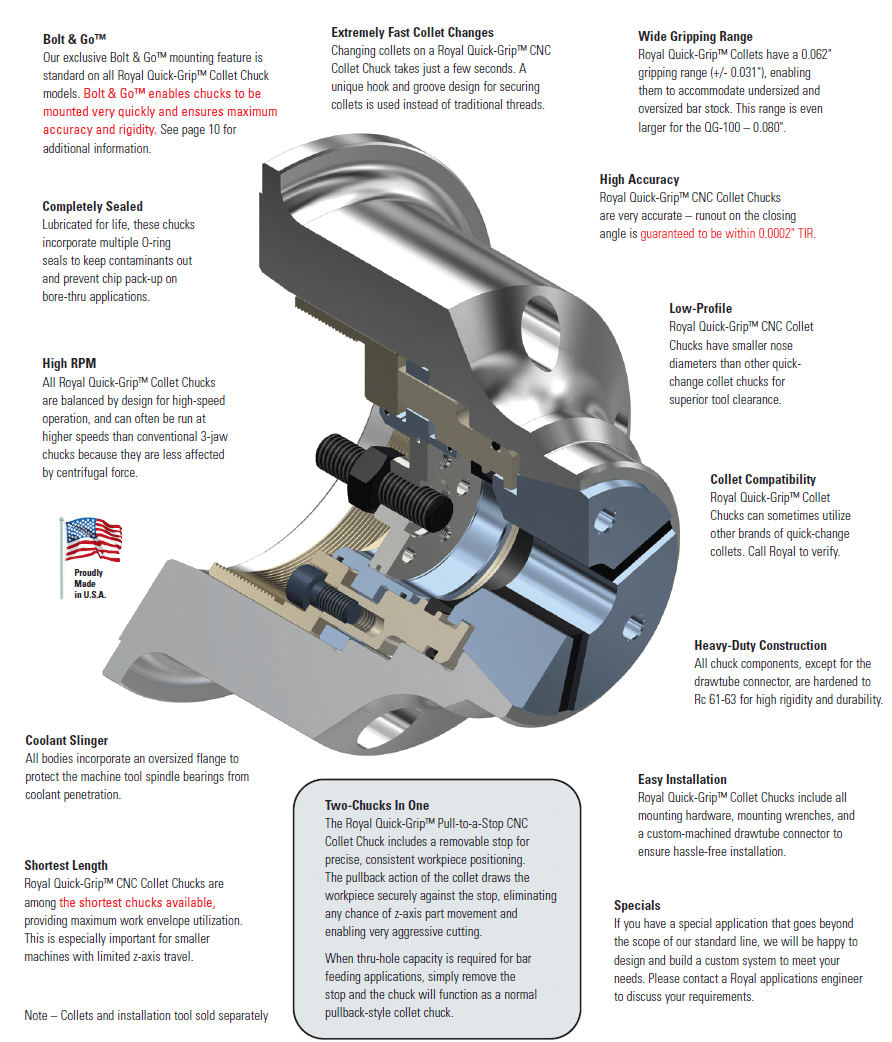

- Same great features as our Accu-Length™ Quick-Grip™ models, except that the collet is not fixed - it moves axially upon opening and closing.

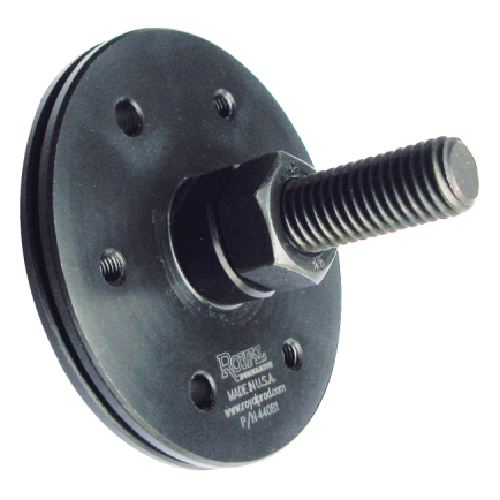

- Included adjustable stop guarantees precise, consistent z-axis part positioning and enables very aggressive cutting.
- Ideal for high-volume, robot-load applications in which the part needs to locate against a shoulder and air-sensing / position confirmation is required.
- Also a great choice for any CNC lathe equipped with a servo-driven bar feeder - simply remove the included stop for full thru-capacity.
- In-stock for same day shipping.
- Proudly Made in U.S.A.
|Collet Chuck Weight (lbs)||28|
|Max Capacity: Bar||2.66|
|Max Capacity: Slug||3.40|
|(A) Overall Length||5.50|
|(B) Nose Diameter||4.37|
|(C) Nose Length||0.80|
|(D) Body Diameter||6.70|
|(E) Flange Diameter||7.62|
|Max Drawbar Force (lbs)||10,115|
|Max Clamping Force (lbs)||23,600|
