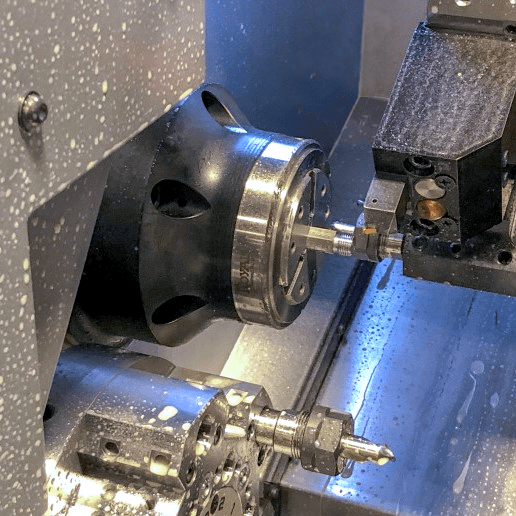

Royal Quick-Grip™ Accu-Length™ CNC Collet Chuck
QG-42 Ultra-Compact with A2-5 Mount
$4,530.00
In Stock for Same Day Shipping
- 10-Second Collet Changes Slash Setup Times.
- Industry-Leading Gripping Range – 0.062"
- Ultra-Precision Accuracy – 0.0002" TIR Guarenteed.
- Compact and ultra-compact models to suit all machines and applications.
- Extreme Grip Force = Most Aggressive Chip Removal Rates and Fastest Cycle Times.
- Maximum Rigidity Produces Superior Part Finishes.
- Best Tool Clearance – Critical For Live Tooling.
- Huge Inventory of Quick-Grip Collets and Accessories In-Stock for Same-Day Shipping.
- Includes free custom machined connector to fit your exact lathe drawtube specifications.
- In-stock for same day shipping.
- Proudly Made in U.S.A.
| Spindle Type | A2-5 |
|---|---|
| Collet Chuck Weight (lbs) | 15 |
| Collet Type | QG-42 |
| Max Capacity: Bar | 1.66 |
| Max Capacity: Slug | 2.62 |
| (A) Overall Length | 4.00 |
| (B) Nose Diameter | 4.00 |
| (C) Nose Length | 0.75 |
| (D) Body Diameter | 5.70 |
| (E) Flange Diameter | 6.45 |
| Max Drawbar Force (lbs) | 7,865 |
| Max Clamping Force (lbs) | 17,980 |
| Max RPM | 6,000 |
| Chuck Style | (Compact Length / Compact Diameter) |
Filters Sort results
Reset Apply
PRODUCT | PART NUMBER | PRICE | ||
|---|---|---|---|---|
 | Royal Quick-Grip™ Ejector — QG-42 Compact | $973.00 | ||
 | Royal Quick-Grip™ Power-Block Key-Operated Collet Fixture — QG-42 | $3,865.00 | ||
| Royal Quick-Grip™ Ejector — QG-42 Standard | $1,125.00 | ||
 | Royal Quick-Grip™ Collet Installation Tool — QG-42 Manual | $616.00 | ||
 | Royal Quick-Grip™ Collet Installation Tool — QG-42 Pneumatic | $1,555.00 | ||
 | Royal Quick-Grip™ Standard Stop — QG-42 | $220.00 | ||
 | Royal Quick-Grip™ Extra-Depth Stop — QG-42 | $388.00 |
