Royal Quick-Grip™ Power-Block™
Key-Operated Collet Fixtures
ROYAL QG COMBO POWER-BLOCK™
Three Great Workholding Options in One Fixture!
Quick-Grip™ Collet Setup

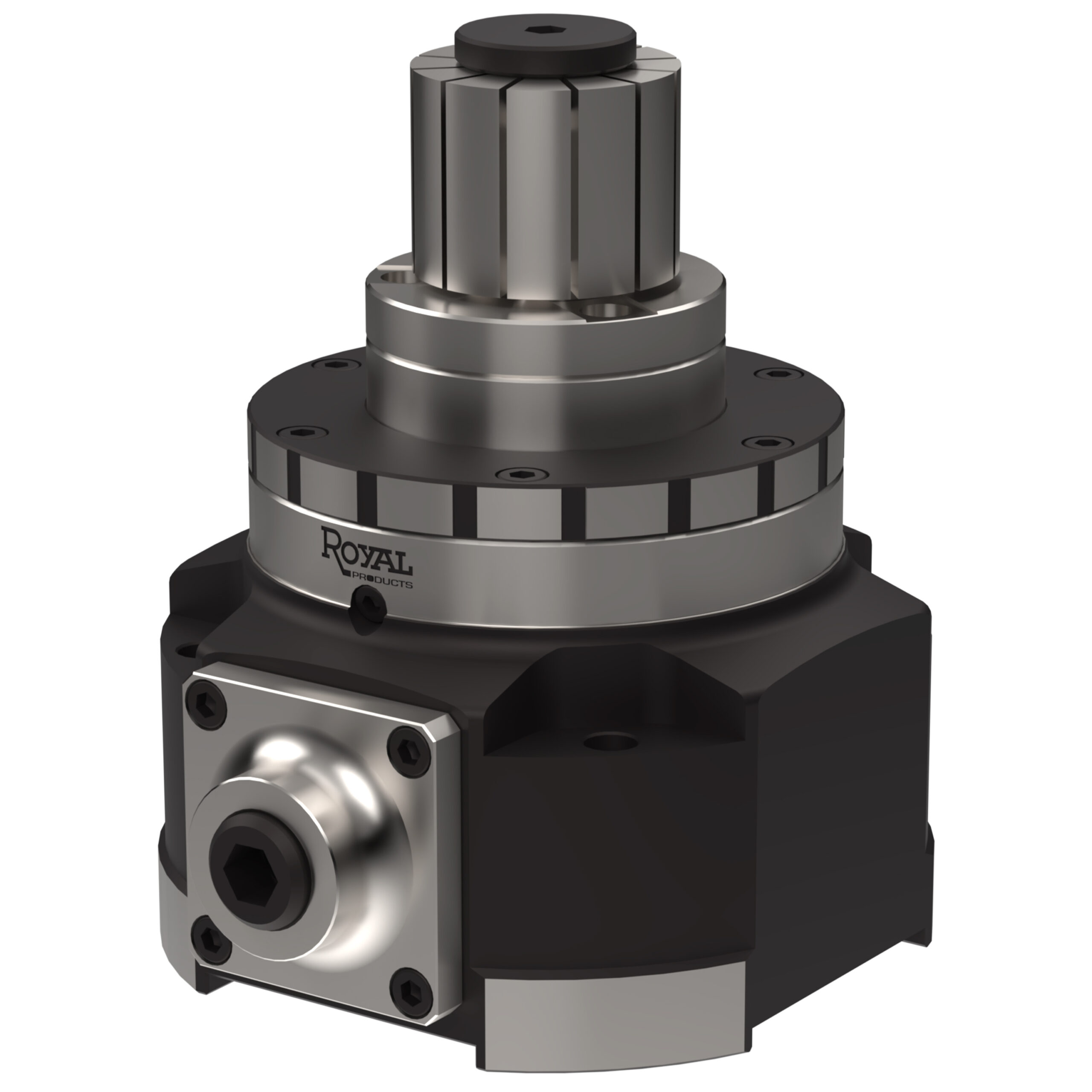

I.D. Gripping Setup

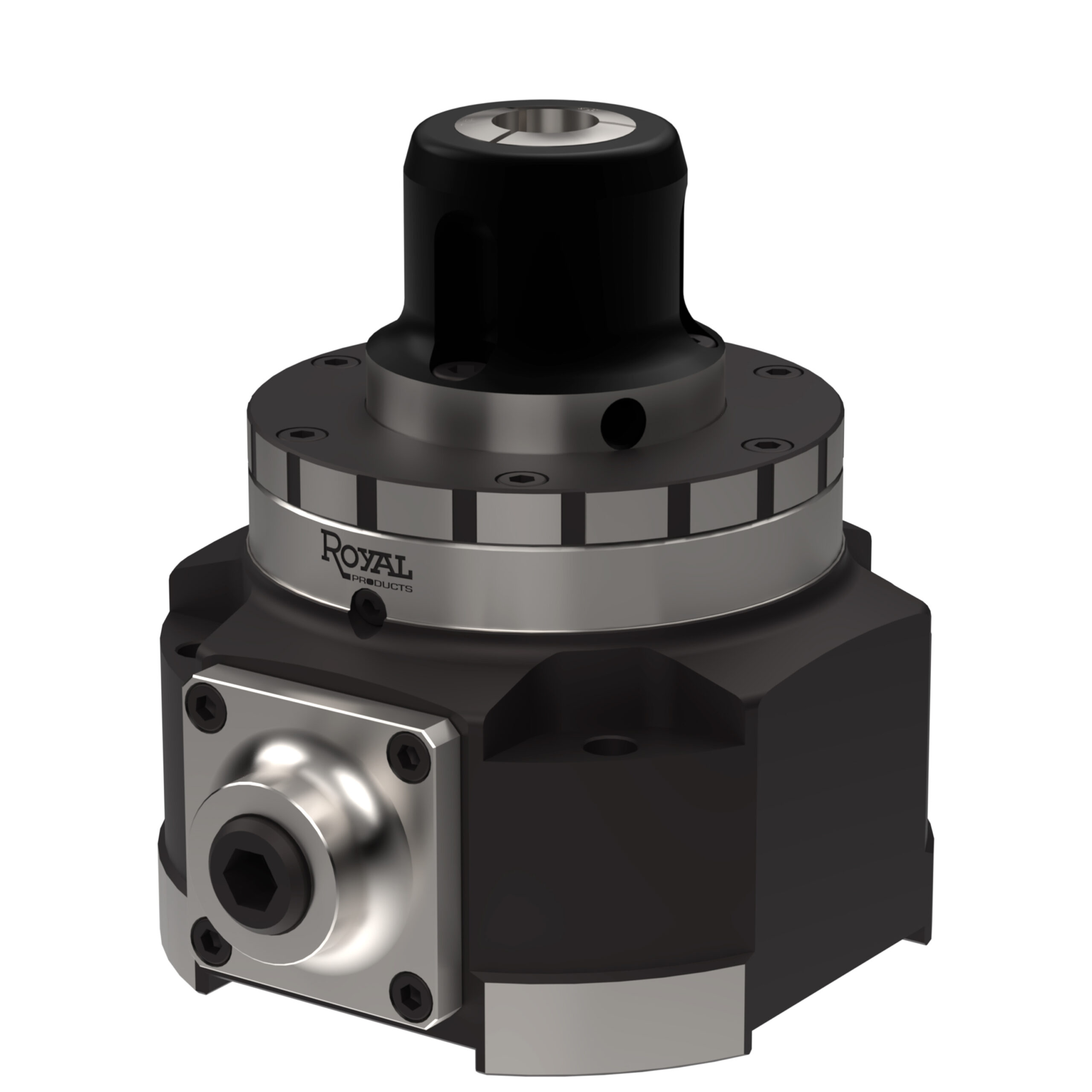

5C Collet Setup
Get More Out of Your Vertical, Horizontal, and 5-Axis Machining
- These multi-function fixtures enable you to use Royal QG collets, Royal I.D. mandrels/sleeves, and 5C collets in your 3, 4, and 5-axis applications.
- Manually actuated with a hex key (included).
- Many of the same great features as our QG Combo CNC Collet Chucks, including ten-second collet changes and parallel-grip collets with a full 0.062″ clamping range.
- Can be used in both stationary and rotary table applications. Caution – not for use on lathes or grinders above 5 rpm!
- Pullback design with an internally threaded backplate enables the use of a stop rod.
- Unit is supplied configured to accept Royal QG collets. For I.D. and 5C workholding, additional components are required (order separately).
How It Works
- Royal QG Power-Block™ Combo Fixtures directly accept Royal QG collets.
- For I.D. and 5C applications, a hardened and ground adapter (sold separately) is inserted and bolted to the fixture and engages with the piston via a bayonet arrangement.
- This adapter has a ground 75mm I.D. recess to accept Royal I.D. mandrels or our 5C collet nose.
Royal Quick-Grip™ Combo Power-Block™ Key-Operated Collet Fixtures
Filters Sort results
Reset Apply

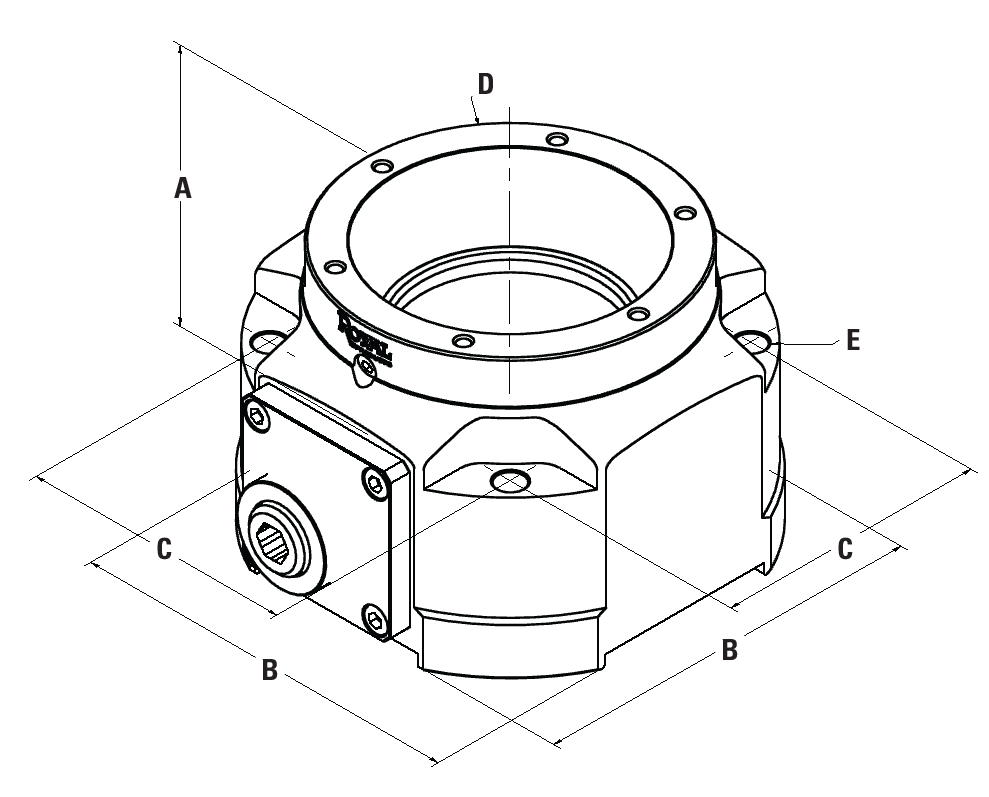

Collet Model | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | MAX TIGHTENING TORQUE (ft. - .lbs) | MAX CLAMPING FORCE (.lbs.) | PART NUMBER | PRICE | |
|---|---|---|---|---|---|---|---|---|---|---|
| QG-52 | 4.13 | 5.38 | 3.71 | 4.13 | 0.43 | 42 | 5,125 | $4,405.00 | ||
| QG-65 | 4.13 | 5.88 | 4.07 | 4.92 | 0.43 | 42 | 6,430 | $4,660.00 | ||
| QG-80 | 4.25 | 6.50 | 4.60 | 5.51 | 0.51 | 57 | 7,420 | $6,425.00 |
5C Collet Nose
FIRST-GENERATION KEY-OPERATED POWER-BLOCKS™
Great for Job Shops!
- Unit is mechanically actuated via an included hex key.
- Can be used in both stationary and rotary table applications.
Caution – not for use on lathes or grinders above 5 rpm! - Many of the same great features as our Quick-Grip™ CNC Collet Chucks, including ten-second collet changes and parallel-grip collets with a full 0.062″ clamping range (0.080″ for QG-100).
- Pullback design with an internally threaded back plate enables the use of a stop rod.
- Fixture face is precision ground and includes tapped holes, enabling the use of custom stops, locators, etc.
- Bottom and all four sides are ground for both vertical and horizontal mounting.
- Ideal for high production 4th and 5th axis applications.
- For use with Royal Quick-Grip™ collets and installation tools.
Royal Quick-Grip™ Power-Block™ Key-Operated Collet Fixtures (First-Generation)
Filters Sort results
Reset Apply
Collet Model | Collet Capacity Round | Collet Capacity Square | A | B | C | D | E | MAX TIGHTENING TORQUE (ft. - .lbs) | MAX CLAMPING FORCE (.lbs.) | PART NUMBER | PRICE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QG-42 | 1.66 | 1.16 | 3.94 | 5.12 | 3.94 | 3.94 | 0.43 | 42 | 5,125 | $4,770.00 | ||
| QG-52 | 2.03 | 1.41 | 3.94 | 5.12 | 3.94 | 3.94 | 0.43 | 42 | 5,125 | $4,770.00 | ||
| QG-80 | 3.28 | 2.03 | 4.33 | 6.50 | 5.31 | 5.31 | 0.51 | 57 | 7,420 | $6,955.00 | ||
| QG-100 | 4.03 | 2.78 | 4.33 | 7.87 | 6.69 | 6.50 | 0.51 | 57 | 9,375 | $7,495.00 |
- These first-generation models utilize Royal QG Collets only — no I.D. or 5C functionality
- Available while supplies last
ROYAL ULTRA-PRECISION QUICK-GRIP™ COLLETS
Why Do Top Manufacturers Insist on Royal Quick-Grip™ Collets?
Industry-Leading 0.062" (0.080” for QG-100) Gripping Range Covers More Diameters with Fewer Collets
Ultra-Precision Accuracy – 0.0002" TIR or Better
Vulcanization Guaranteed for Life
Parallel-Grip Maintains Full-Length Part Engagement
Exceptional Grip-Force Enables Very Aggressive Cutting
Exclusive Royal Risk-Free Performance Guarantee
Fast Delivery on Custom Shapes and Sizes
Special Slot Relief Grinding Eliminates "Collet Popping" and Minimizes Chuck Wear
These Extremely Advanced Collets Will Revolutionize Your Workholding
- Industry-leading 0.062" Gripping Range (0.080" for QG-100) – greater than other quick-change collets on the market and more than 12X that of traditional spring collets.
- Royal Quick-Grip Collets are precision-ground to nominal size, with a gripping range of ±0.031" (0.040” for QG-100) to handle undersized/oversized stock.
Example – a ½" QG-65 collet is ground to 0.500" dia., and can hold any part ranging in size from 0.469" – 0.531" dia. - Ultra-Precision Accuracy – 0.0002" TIR or better guaranteed on round-bores. Total system accuracy (chuck + collet) guaranteed to 0.0004" or better.
- All Royal Quick-Grip™ Collets are designed for minimal projection beyond the chuck face (≤ 0.020") for optimum rigidity and machine work-zone utilization.
- All models have a smooth gripping surface, but round-bores are also available from stock in a double-serrated version for very aggressive first-op machining.
- Vulcanized rubber between the hardened steel collet segments provides outstanding protection against coolant and chip penetration, and Royal’s advanced vulcanization process carries a lifetime guarantee against failure.
- Collets can be counter-bored for increased capacity.
- S-type master collets available for QG-65 and QG-80 chuck models.
- Royal Quick-Grip™ Collets are compatible with some other brands of quick-change chucks, but note that the QG-80 and QG-100 models have a six-slot design (for increased gripping torque) that requires the use of a Royal installation tool. Call us to verify compatibility.
- Custom sizes and shapes available as quick-ship specials. Collet segments can also be carbide-coated for extremely harsh applications. Contact one of our applications engineers at 1-800-645-4174 to discuss your requirements.
Order Today – Have it Tomorrow
View QG-32
Collets
Collets
QG-32
1.28" Capacity
View QG-42
Collets
Collets
QG-42
1.66" Capacity
View QG-52
Collets
Collets
QG-52
2.03" Capacity
View QG-65
Collets
Collets
QG-65
2.66" Capacity
View QG-80
Collets
Collets
QG-80
3.28" Capacity
View QG-100
Collets
Collets
QG-100
4.03" Capacity
View Emergency
Collets
Collets
Emergency
View S-Type
Collets
Collets
S-Type
QG-100 to QG-65
Adapter
Adapter
QG-100 to QG-65 Adapter
View Custom
Collets
Collets
Custom
Choose Mandrel
- Choose appropriate mandrel model according to gripping range.
- All Royal mandrels have a common precision ground interface for complete compatibility with all Royal I.D. body assemblies.
- Order body assembly, locators, and sleeves separately.
Royal Mandrels
Filters Sort results
Reset Apply
Mandrel Model | Gripping Range | C | D | E | Max Axial Force (lbs) | Max Clamping Force (lbs) | PART NUMBER | PRICE | |
|---|---|---|---|---|---|---|---|---|---|
| A | 0.479–0.640 | 1.57 | 0.57 | 0.87 | 1570 | 2670 | $2,140.00 | ||
| B | 0.620 –0.901 | 1.81 | 0.59 | 1.06 | 2245 | 3820 | $2,140.00 | ||
| C | 0.870 –1.151 | 2.05 | 0.61 | 1.26 | 2695 | 4580 | $2,140.00 | ||
| D | 1.120 –1.651 | 2.32 | 0.60 | 1.50 | 4045 | 6875 | $2,140.00 | ||
| E | 1.620 –3.276 | 2.52 | 0.58 | 1.69 | 5170 | 8785 | $2,140.00 |
Choose Part Locator
- Optional part locator bolts to the front of the mandrel and provides a precision banking surface for the workpiece to locate against.
- Order body assembly, mandrels, and sleeves separately.
Choose Expanding Sleeve
- Order expanding sleeves according to mandrel models A thru E.
- All expanding sleeves are fully sealed against coolant and chip penetration.
- Parallel grip ensures full-length part contact for optimum accuracy and grip force.
- All sleeves collapse 0.005″ below nominal ground size to ensure easy part loading and unloading.
- Order body assembly, mandrels, and locators separately
Royal Expanding Sleeves – Model A
Filters Sort results
Reset Apply
Nominal Sleeve Diameter | Gripping Range | Part Number | PRICE | |
|---|---|---|---|---|
| 31⁄64″ | 0.479 - 0.499 | 47120 * Not sealed due to limited wall thickness. | $627.00 | |
| 1⁄2″ | 0.495 - 0.515 | 47121 * Not sealed due to limited wall thickness. | $627.00 | |
| 33⁄64″ | 0.511 - 0.531 | $627.00 | ||
| 17⁄32″ | 0.526 - 0.546 | $627.00 | ||
| 35⁄64″ | 0.542 - 0.562 | $627.00 | ||
| 9⁄16″ | 0.558 - 0.578 | $627.00 | ||
| 37⁄64″ | 0.573 - 0.593 | $627.00 | ||
| 19⁄32″ | 0.589 - 0.609 | $627.00 | ||
| 39⁄64″ | 0.604 - 0.624 | $627.00 | ||
| 5⁄8″ | 0.620 - 0.640 | $627.00 | ||
| 41⁄64″ | 0.636 - 0.656 | $627.00 |
Royal Expanding Sleeves – Model B
Filters Sort results
Reset Apply
Nominal Sleeve Diameter | Gripping Range | Part Number | PRICE | |
|---|---|---|---|---|
| 5⁄8″ | 0.620 - 0.651 | 47130 * Not sealed due to limited wall thickness. | $683.00 | |
| 21⁄32″ | 0.651 - 0.682 | $683.00 | ||
| 11⁄16″ | 0.683 - 0.714 | $683.00 | ||
| 23⁄32″ | 0.714 - 0.745 | $683.00 | ||
| 3⁄4″ | 0.745 - 0.776 | $683.00 | ||
| 25⁄32″ | 0.776 - 0.807 | $683.00 | ||
| 13⁄16″ | 0.808 - 0.839 | $683.00 | ||
| 27⁄32″ | 0.830 - 0.870 | $683.00 | ||
| 7⁄8″ | 0.870 - 0.901 | $683.00 |
Royal Expanding Sleeves – Model C
Filters Sort results
Reset Apply
Nominal Sleeve Diameter | Gripping Range | Part Number | PRICE | |
|---|---|---|---|---|
| 7⁄8″ | 0.870 - 0.901 | $683.00 | ||
| 29⁄32″ | 0.901 - 0.932 | $683.00 | ||
| 15⁄16″ | 0.933 - 0.964 | $683.00 | ||
| 31⁄32″ | 0.964 - 0.995 | $683.00 | ||
| 1″ | 0.995 - 1.026 | $683.00 | ||
| 1 1⁄32″ | 1.026 - 1.057 | $683.00 | ||
| 1 1⁄16″ | 1.058 - 1.089 | $683.00 | ||
| 1 3⁄32″ | 1.089 - 1.120 | $683.00 | ||
| 1 1⁄8″ | 1.120 - 1.151 | $683.00 |
Royal Expanding Sleeves – Model D
Filters Sort results
Reset Apply
Nominal Sleeve Diameter | Gripping Range | Part Number | PRICE | |
|---|---|---|---|---|
| 1 1⁄8″ | 1.120 - 1.151 | $745.00 | ||
| 1 5⁄32″ | 1.151 - 1.182 | $745.00 | ||
| 1 3⁄16″ | 1.183 - 1.214 | $745.00 | ||
| 1 7⁄32″ | 1.214 - 1.245 | $745.00 | ||
| 1 1⁄4″ | 1.245 to 1.276 | $745.00 | ||
| 1 9⁄32″ | 1.276 - 1.317 | $745.00 | ||
| 1 5⁄16″ | 1.308 - 1.339 | $745.00 | ||
| 1 11⁄32″ | 1.339 - 1.370 | $745.00 | ||
| 1 3⁄8″ | 1.370 - 1.401 | $745.00 | ||
| 1 13⁄32″ | 1.401 - 1.432 | $745.00 | ||
| 1 7⁄16″ | 1.433 - 1.464 | $745.00 | ||
| 1 15⁄32″ | 1.464 - 1.495 | $745.00 | ||
| 1 1⁄2″ | 1.495 - 1.526 | $745.00 | ||
| 1 17⁄32″ | 1.526 - 1.557 | $745.00 | ||
| 1 9⁄16″ | 1.558 - 1.589 | $745.00 | ||
| 1 19⁄32″ | 1.589 - 1.620 | $745.00 | ||
| 1 5⁄8″ | 1.620 - 1.651 | $745.00 |
Royal Expanding Sleeves – Model E
Filters Sort results
Reset Apply
Nominal Sleeve Diameter | Gripping Range | Part Number | PRICE | |
|---|---|---|---|---|
| 1 5⁄8″ | 1.620 - 1.651 | $908.00 | ||
| 1 21⁄32″ | 1.651 - 1.682 | $908.00 | ||
| 1 11⁄16″ | 1.683 - 1.714 | $908.00 | ||
| 1 23⁄32″ | 1.714 - 1.745 | $908.00 | ||
| 1 3⁄4″ | 1.745 - 1.776 | $908.00 | ||
| 1 25⁄32″ | 1.776 - 1.807 | $908.00 | ||
| 1 13⁄16″ | 1.808 - 1.839 | $908.00 | ||
| 1 27⁄32″ | 1.839 - 1.870 | $908.00 | ||
| 1 7⁄8″ | 1.870 - 1.901 | $908.00 | ||
| 1 29⁄32″ | 1.901 - 1.932 | $908.00 | ||
| 1 15⁄16″ | 1.933 - 1.964 | $908.00 | ||
| 1 31⁄32″ | 1.964 - 1.995 | $908.00 | ||
| 2″ | 1.995 - 2.026 | $908.00 | ||
| 2 1⁄32″ | 2.026 - 2.057 | $908.00 | ||
| 2 1⁄16″ | 2.058 - 2.089 | $908.00 | ||
| 2 3⁄32″ | 2.089 - 2.120 | $908.00 | ||
| 2 1⁄8″ | 2.120 - 2.151 | $908.00 | ||
| 2 5⁄32″ | 2.151 - 2.182 | $908.00 | ||
| 2 3⁄16″ | 2.183 - 2.214 | $908.00 | ||
| 2 7⁄32″ | 2.214 - 2.245 | $908.00 | ||
| 2 1⁄4″ | 2.245 - 2.276 | $908.00 | ||
| 2 9⁄32″ | 2.276 - 2.307 | $908.00 | ||
| 2 5⁄16″ | 2.308 - 2.339 | $908.00 | ||
| 2 11⁄32″ | 2.339 - 2.370 | $908.00 | ||
| 2 3⁄8″ | 2.370 - 2.401 | $908.00 | ||
| 2 13⁄32″ | 2.401 - 2.432 | $908.00 | ||
| 2 7⁄16″ | 2.433 - 2.464 | $908.00 | ||
| 2 15⁄32″ | 2.464 - 2.495 | $908.00 | ||
| 2 1⁄2″ | 2.495 - 2.526 | $908.00 | ||
| 2 17⁄32″ | 2.526 - 2.557 | $1,030.00 | ||
| 2 9⁄16″ | 2.558 - 2.589 | $1,030.00 | ||
| 2 19⁄32″ | 2.589 - 2.620 | $1,030.00 | ||
| 2 5⁄8″ | 2.620 - 2.651 | $1,030.00 | ||
| 2 21⁄32″ | 2.651 - 2.682 | $1,030.00 | ||
| 2 11⁄16″ | 2.683 - 2.714 | $1,030.00 | ||
| 2 23⁄32″ | 2.714 - 2.745 | $1,030.00 | ||
| 2 3⁄4″ | 2.745 - 2.776 | $1,030.00 | ||
| 2 25⁄32″ | 2.776 - 2.807 | $1,030.00 | ||
| 2 13⁄16″ | 2.808 - 2.839 | $1,030.00 | ||
| 2 27⁄32″ | 2.839 - 2.870 | $1,030.00 | ||
| 2 7⁄8″ | 2.870 - 2.901 | $1,030.00 | ||
| 2 29⁄32″ | 2.901 - 2.932 | $1,030.00 | ||
| 2 15⁄16″ | 2.933 - 2.964 | $1,030.00 | ||
| 2 31⁄32″ | 2.964 - 2.995 | $1,030.00 | ||
| 3″ | 2.995 - 3.026 | $1,030.00 | ||
| 3 1⁄32″ | 3.026 - 3.057 | $1,030.00 | ||
| 3 1⁄16″ | 3.058 - 3.089 | $1,030.00 | ||
| 3 3⁄32″ | 3.089 - 3.120 | $1,030.00 | ||
| 3 1⁄8″ | 3.120 - 3.151 | $1,030.00 | ||
| 3 5⁄32″ | 3.151 - 3.182 | $1,030.00 | ||
| 3 7⁄32″ | 3.214 - 3.245 | $1,030.00 | ||
| 3 3⁄16″ | 3.183 - 3.214 | $1,030.00 | ||
| 3 1⁄4″ | 3.245 - 3.276 | $1,030.00 |
*Not sealed due to limited wall thickness.
Note – sleeves larger than 2-1/2″ dia. are 0.28″ longer than dimension E and terminate flush with the face of the expanding rod.
